BATTERIES

In Stock

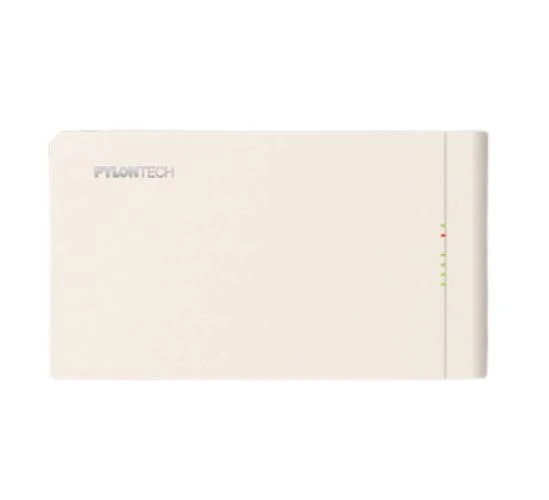

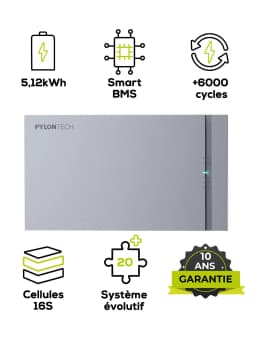

Pylontech Fidus 5.12 kWh Lithium Battery

Low-voltage lithium iron phosphate battery for residential solar storage, designed for long cycle life, high usable capacity and flexible parallel expansion. High-efficiency solution designed for maximum yield and reliability in extreme environments.

Contact Sales Datasheet

Low-voltage lithium iron phosphate battery for residential solar storage, designed for long cycle life, high usable capacity and flexible parallel expansion. Model: FB-L-5.12-EU / FB-L-5.12-EU-Pro / FB-L-5.12-PK

Specifications

Battery Capacity5.12 kWh

Usable Energy4.86 kWh

Rated Voltage51.2 V

Capacity100 Ah

Battery TypeLithium Iron Phosphate (LiFePO4 / LFP)

Voltage ClassLV

IP RatingIP65

Depth of Discharge95 %

Cycle Life6000+ Cycles @ 80% DOD

Max Charge Current100 A

Max Discharge Current100 A

Peak Current200 A

CommunicationCAN / RS485

BMSIntegrated Smart BMS

Parallel UnitsUp to 16 Units

CEC ModelFB-L-5.12 family

Shipping Information

Weight45 kg

Dimensions630 × 170 × 363 mm

Warranty Information

Product Warranty10 Yrs Years
